Model PSC-122B
High Efficiency Switching Power Supply
Specifications
◆ Input Voltage: AC100~240V, 0.6A 50/60Hz
◆ Output Voltage (each): 12.8 VDC
◆ Current Draw (each): 1 Amps Max
◆ Total Current Draw: 1.7 Amps Max
◆ Battery Charging Current 0.3 Amps Max (Maximum charge current to the 12VDC battery is approx. 0.28A)
◆ LED Indicator: Power Light(Red), DC Light(Green), BATT Light(Yellow)
◆ Weight: 70.55 oz (2000g)
◆ Dimensions: 8 1/4” x 8 11/16” x 3 1/8” 210 x 220 x 80mm (L*W*H)
Product Features
◆ Two independent power outputs for ease of connecting with electric locks and other devices.
◆ Distance between the power supply and output devices (e.g. electric locks) can be up to 50 meters
◆ Electronically protected output 1 and 2 against
shorting and overloading.
◆ Battery protection: electronically protected against battery reversal, shorting, or overloading.
◆ Power light: Red LED when input power is connected
and off when power is off.
◆ DC light: Green indicates DC power output (or battery charging) is normal. Off or flashing when there is an issue.
Battery light: Yellow LED when battery voltage is normal. Off when battery is discharging and voltage is below 10 VDC.
ABP-100 mounting bracket is included with two colours to choose from

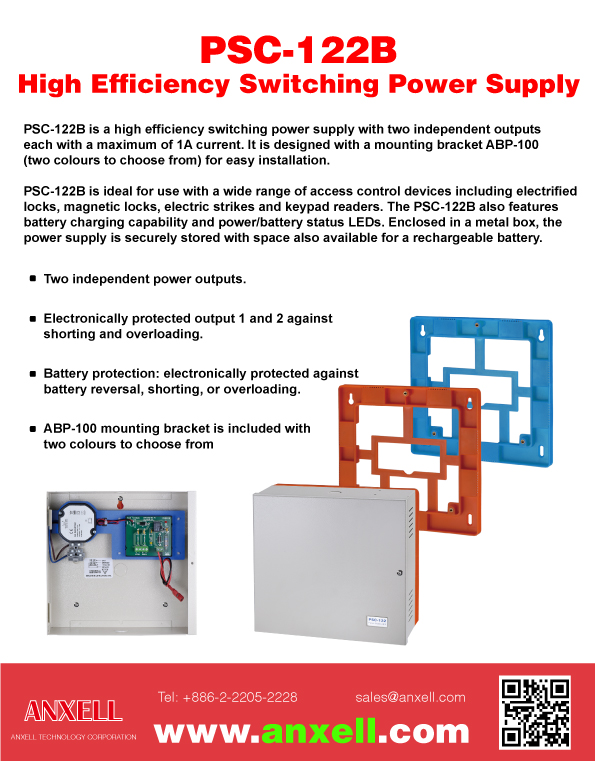

Installation Instructions and Sales Sheet
